- The Quectel EG25-G Mini PCIe module supports youyeetoo products: youyeetoo X1, R1, YY3568, YY3588. Some devices require an adapter board to use this module.

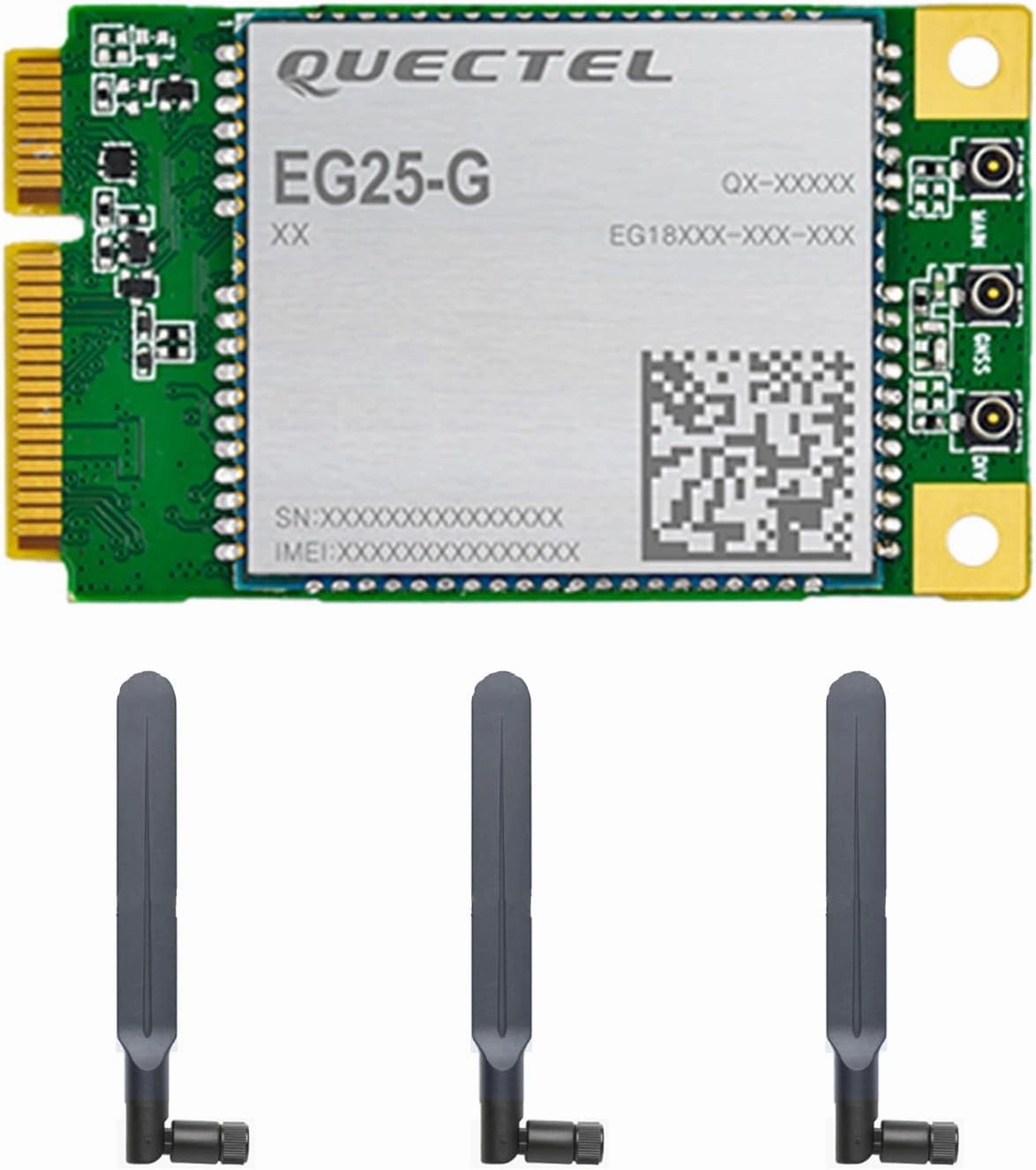

- Shipping List: 1x EG25-G Mini PCIe module, 3x Antenna.
- High-Speed LTE Connectivity with Global Coverage: The Quectel EG25-G Mini PCIe module offers high-speed data transfer capabilities of Category 4 LTE, supporting up to 150Mbps for downloads and 50Mbps for uploads. It is also compatible with UMTS/HSPA and GSM/GPRS/EDGE networks, ensuring connectivity on a global scale. This makes it ideal for IoT and M2M applications that require fast and reliable network connectivity.
- Multi-Functional Integration and Simplified Design: The module integrates a multi-constellation GNSS receiver supporting GPS, GLONASS, BeiDou, Galileo, and QZSS, providing quick, accurate, and dependable positioning services. Additionally, it includes a rich set of internet protocols and industry-standard interfaces such as a USB 2.0 high-speed interface and an optional PCM digital audio interface, which simplifies product design and development processes.
- Powerful Software Support and Certifications: The EG25-G Mini PCIe module comes with USB serial drivers for various operating systems, including Windows, Linux, and Android, as well as RIL and NDIS drivers. It supports a multitude of communication protocols such as TCP/UDP, PPP, FTP, etc. Moreover, the module is RoHS compliant and has received several global certifications, including GCF, Verizon, AT&T, FCC, etc., ensuring the quality and compliance of the product.
The EG25-G Mini PCIe is an LTE category 4 module in a standard PCI Express Mini Card form factor measuring 51.0mm x 30.0mm x 4.9mm, which meets the 3GPP Release 11 standard.
Delivering maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, the EG25-G Mini PCIe supports a range of applications that require fast and reliable transmission of large amounts of data, and backward compatibility with existing EDGE and GSM/GPRS networks ensures connection even in remote areas without 3G or 4G coverage. In addition, multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.
(radio) band:
LTE TDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
DATA:
LTE:
LTE-FDD: Max 150Mbps (DL)/Max 50Mbps (UL)
LTE-TDD: Max 130Mbps (DL)/Max 30Mbps (UL)
UMTS: DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM: EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)
GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
If you need more detail, please check the datasheet.
Feel Free to talk to us if you have any questions.
