- High Output Power: The PA5 II can output 100W x 2 for a 4-ohm load at 1% distortion. High output power and low distortion characteristics make PA5 II series amplifiers sufficient to meet the needs of most speakers
- Balanced structure: The PA5 II Pure sound quality adopt a fully balanced structure and an innovative, makes PA5 II no more hum, no more noise, no more ground loop
- Linkage switch: PA5 II series has 12V trigger input interface, which can be linked with other devices to switch on and off. One set of TRS balanced input, one set of RCA input, The two inputs offer more compatible connecitons
- Using circuit protection: It has no noise when turned on or off, and has complete protection for overvoltage, undervoltage, short circuit,overcurrent, and overheating. Even if there is an unexpected power outage, it will not generate noise, making you worry free to use
- Perfect match: The E50 DAC has pre-amplifier function, the TRS balanced transmission between the DAC and amplifier ensures high fidelity transmission without fear of ground loop interference and environmental interference

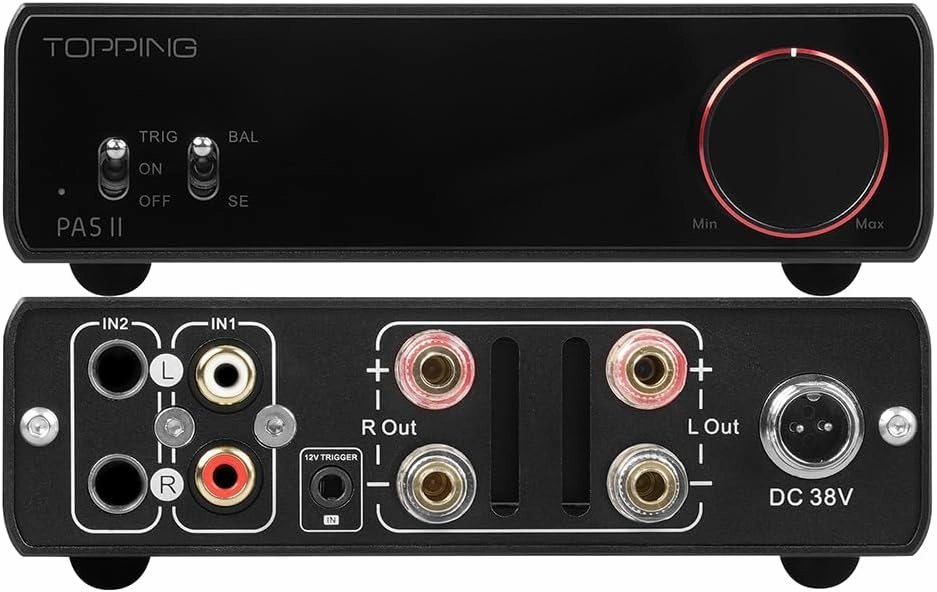

TOPPING PA5 II Series Compact Desktop Balanced Amplifier
Product Features:
When a device with 12V Trigger out jack is connected, PA5II / power on/standby can be controlled through this device. Please switch the power switch on the front panel to"TRIG" if you need to use this function.
Product specification:
Measured: 16.6cm x12.9cm x4.1cm
Weight: 680g
Power input: DC38V/3.0A(2 pin aviation connector)
Signal inputs: SE(RCA L R), BAL(TRS L R)
Signal output: Speaker terminal (BTL)
Power on & off : by manual/trigger signal
Input: BAL
THD N: <0.0004% @4Ω 5W
@1kHz Awt: <0.0003% @8Ω 5W
THD N: <0.0015% @4Ω 5W
@No-wt 20kBW: <0.0006% @8Ω 5W
SNR @MAX OUT 1kHz Awt: 124dB
Dynamic Range @1kHz-Awt: 124dB
Frequency Response: 20Hz-40kHz(±0.3dB)
Output Level: 65Vpp@4Ω, 68Vpp@8Ω
Noise @Awt: <15uVrms
Channel: Crosstalk @1kHz: -106dB
Input sensitivity: 2.6Vrms
Gain: 19.2dB
Input: SE
THD N: <0.0005% @4Ω 5W
@1kHz A-wt: <0.0004% @8Ω 5W
THD N: <0.0015% @4Ω 5W
@No-wt 20kBW: <0.0006% @8Ω 5W
SNR @MAX OUT 1kHz-A-wt: 121dB
Dynamic Range @1kHz A-wt: 121dB
Frequency Response: 20Hz-40kHz(±0.3dB)
Output Level: 65Vpp @4Ω, 68Vpp @8Ω
Noise @A-wt: <15uVrms
Channel: Crosstalk @1kHz:-90dB
Input sensitivity: 1.3Vrms
Gain: 25.0dB
Channel: Balance: 0.1 dB
Adapter Impedance: 4-8Ω
Output Power:
100Wx2 @4ΩTHDN10%
100Wx2 @4Ω THDN1%
85Wx2 @8Ω THDN10%
65Wx2 @8ΩTHDN1%
Package list:
1 x PA5II
1 x Power adaptor
1 x Power cable
1 x Product Information Card
1 x Quick Start Guide
