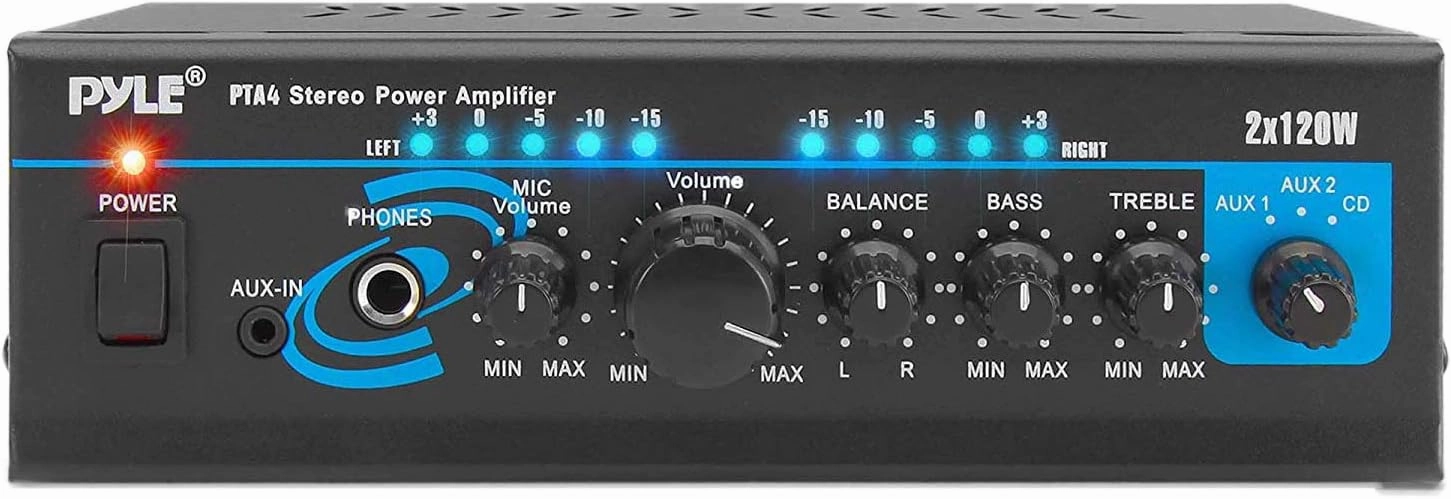

Home Audio Power Amplifier System - 2X120W Mini Dual Channel Mixer Sound Stereo Receiver Box w/ RCA, AUX, Mic Input - For Amplified Speakers, PA, CD Player, Theater, Studio Use - Pyle PTA4 Black
$37.00
$53.00
Save: $
Size:
One Size
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$
Product Details
2X120 WATT POWER: The Pyle Dual Channel Stereo Amplifier is perfect for your PA and home theater acoustic sound system. Gives you 2x120W power which can be used for multi speakers w/ 4 ohm impedance, enjoy high quality amplified audio
4 INPUTS: This personal digital amp box supports various external sources 3 pairs RCA audio input for tuner, CD player, tape deck, camcorder or VCR, 1/4" microphone IN, 1/4" headphone jack input. Also features a REC output for recording
PAGER/MIXING MODE: The mini integrated indoor AV receiver features pager and mixing switch. In pager mode, the signal from the microphone will override to auto talkover, use for hosting and meetings. Switch to mixing mode for a fun karaoke session
PUSH TYPE SPEAKER TERMINAL: The sound amplifying mixer device lets you easily connect speaker wires directly to the amplifier. The total speaker impedance must be at least 4 Ohm per channel at stereo mode
EQ CONTROLS: The improved professional compact bookshelf sound amplifier features crisp and responsive button for power switch and rotary knob controls for mic volume, balance, bass, treble, master volume, and input source
Product Description
Stereo Power Amplifier 2 x 120 Watt Mini Stereo Power Amplifier - 2 x 120 Watt with AUX CD and Mic Inputs RCA REC Output 1/4'' MIC Input Jack 1/4'' Headphone Jack Power On LED Indicator 110/220 Voltage Selector 2 x 120 Watt Peak at 4-Ohm Blue LED Output Level Display 3 5mm Aux CD/MP3 Input Jack Switchable MIC Pager and Mixing Modes Four Push Type Speaker L/R Terminals Switchable AUX1/AUX2/CD and RCA Input Bass Treble Balance Master and Mic Volume Controls Dimensions 8 27''W x 2 72''H x 5 39''D Pyle PTA4 Home Amplifier is perfect for powering any stereo system Complete with AUX/CD inputs and 2 x 120 watts of power -- this simple to use and durable amp has bass and treble controls a slick blue LED output level display L/R RCA inputs and 4 speaker outputs Using sophisticated circuitry and premium components for uncompromising musicality -- this product is famous for delivering powerful and accurate sound This small but powerful amp delivers clear and crisp audio for it listener Durable and affordable this amp is made to last
From the Manufacturer
Front View Click here for a larger image Connection Diagram Click here for a larger image Back View Click here for a larger image Stereo Power Amplifier Click here for a larger image
The Ultimate Stereo Power Amplifier
This amplifier gives you the power and versatility you need to create a professional sound system. Its wide frequency response makes it suitable for amplifying any type of audio including music or vocals. It can be used in meeting halls, restaurants, schools, stores and, at home --the perfect solution for paging systems anywhere. Get the power you need with 2 x 120 Watt to handle all your audio needs.
Switchable Mixing (Karaoke) Mode
When set to 'mixing' the signals from AUX1, AUX2, CD, & MIC will exist at the same time and works great for creating a karaoke event. Your music will play from your selected audio source and you will be able to sing through a connected microphone. (Microphone not included)
Switchable MIC Pager Mode
When set to 'pager' the signal from AUX1, AUX2, & CD will be attenuated by -12 dB and the signal from MIC will override to page (Auto Talkover) and makes for an exceptional paging system.
Push Type Speaker Terminals
Lets you easily connect speaker wires directly to the amplifier. The speaker impedance can be ranged from four to eight Ohms for the general stereo output. The total speaker impedance must be at least four Ohms per channel at stereo mode.
110/220 Voltage Selector
This amplifier has selectable input voltage from 110 V/60 Hz (the standard in USA and Canada) to 220 V/50 Hz (for European operation). Please make sure the switch is in the proper position before operating.
.14-Inch AUX-In Jack
The .14-inch jack, located conveniently in the front, allows you to connect the input of many devices including iPods, MP3 players, smartphones, CD players, etc.
.25-Inch Phone Jack
Accepts headphones with .25-inch plugs.
.25-Inch Microphone Input Jack
Accepts microphones with .25-inch plugs.
REC RCA Output
Lets you connect the amplifier to a tape deck for recording.
Take Control
Use the control center panel located on the face of the unit to make adjustments to microphone volume, master volume, balance, bass, and treble
Replaceable Power Fuse
The amplifier uses a fuse for protection against surges and short circuit. If the amplifier suddenly turns off and will not turn on, check the fuse, and replace it if necessary. (Replacement fuse to use: 1.5-amp, 250-volt, fast-acting .2 x .8 inches fuse -not included)
Additional Features
Harmonic Distortion: 0.3%
2 x 120 Watt RMS at four Ohms
Blue LED Output Level Display
Frequency Response: 20 Hz-40 kHz
Power Fuse: 1.5 A, 250 V Fast-Acting (.2 x .8 inches)
Power Requirement: 120 V AC 60 Hz/230 V AC 50 Hz
Tone Controls: Bass & Treble: /-12 dB (100 Hz/10 kHz)
