- Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level.
- Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer...
- Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control…
- Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

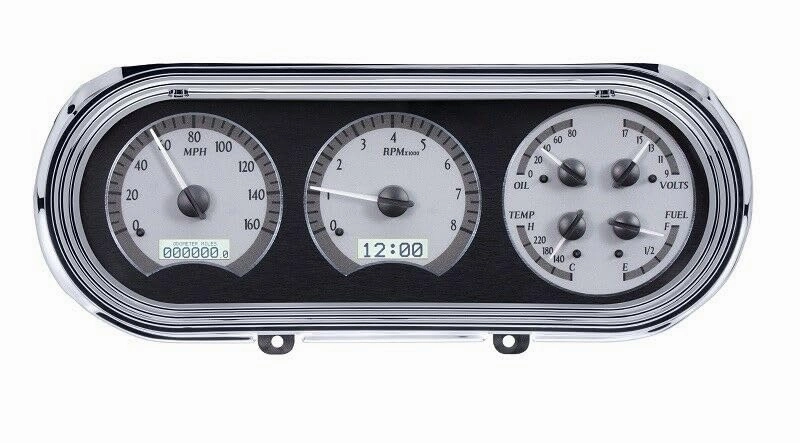

- The VHX-63C-NOV-S-W (silver alloy style/white backlighting) is compatible with 1963-65 Chevy Nova. A direct bolt-in using an OEM or reproduction bezel (not included), the Nova is graced with a full-function instrument system with indicators. Bezel is NOT included, shown for demonstration purposes only.
The new VHX System is compatible with 1963-65 Chevy Nova, made to fit directly into the stock instrument bezel without modification, adding a wealth of features to this iconic vehicle.
Don't think we forgot Chevy's compact street fighter! A direct bolt-in using an OEM or reproduction bezel (not included), the Nova is graced with a full-function instrument system with indicators. Will work in 1962 models with the use of 1963-65 bezel.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at Dakota Digital's facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
*Also fits 1962 Novas with the use of 1963-65 Chevy Nova front bezel (not included).
Analog Gauges:
Speedometer - 0-160 MPH
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Digital Message Centers:
Standard Displays:
-Odometer (One time user settable, Million Mile)
-Dual (A/B) Trip Meter (0- 9,999.9)
-Clock (12 hour)
Performance Meters:
-0-60 MPH Timer (0- 100 kmh)
-1/4 mile time
-1/4 mile end speed (trap speed)
-High speed recall
-High RPM recall
Built-In Indicators:
-Turn Signals (Left/ Right)
-High Beam
-Check Engine
-Parking Brake
-Cruise Control (On/ On & Engaged when vehicle is equipped)
-Gear Position (GSS-3000 required, sold separately)
- Is Discontinued By Manufacturer : No
- Product Dimensions : 24 x 14 x 6 inches; 8 Pounds
- Date First Available : September 9, 2016
- Manufacturer : Dakota Digital
