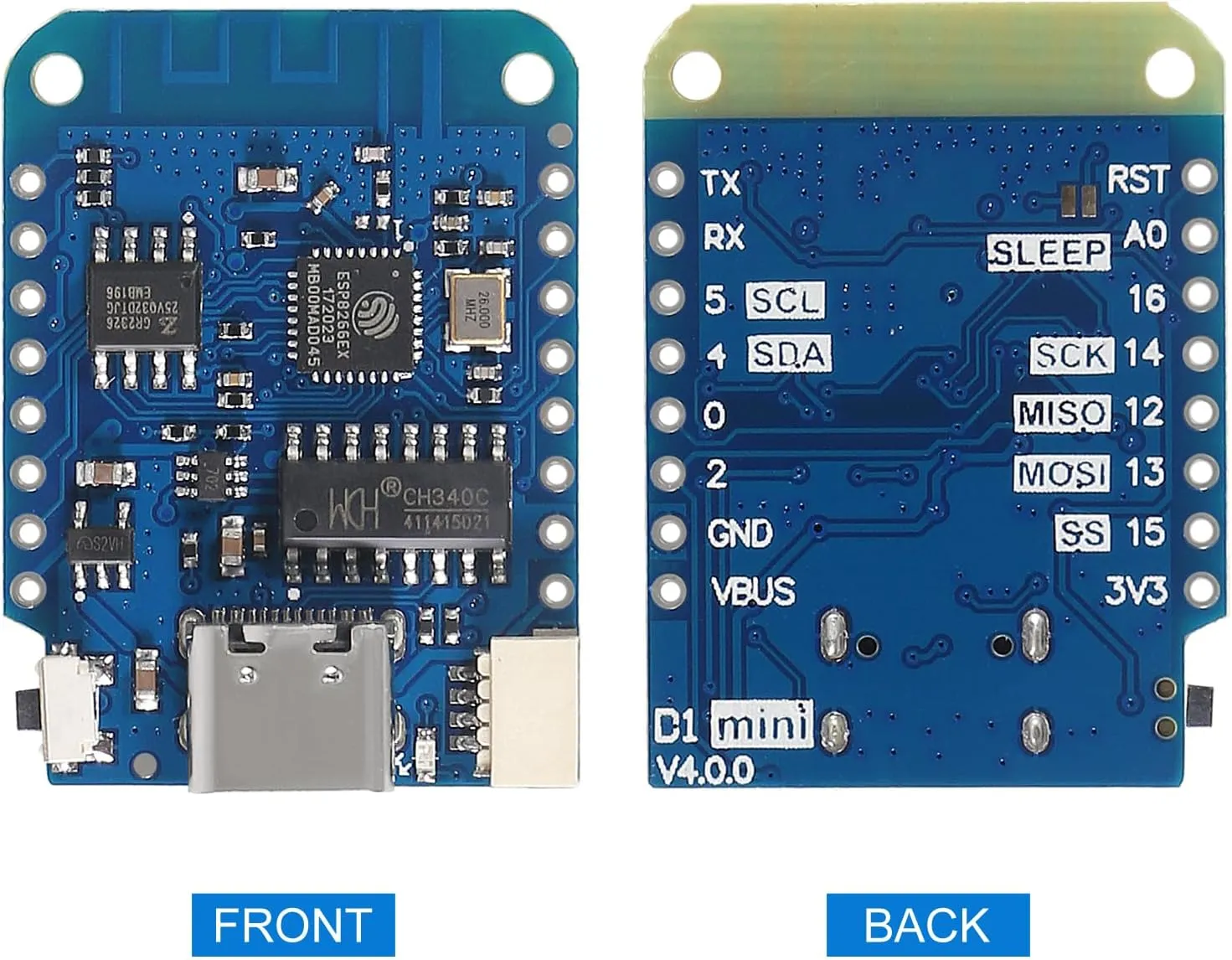

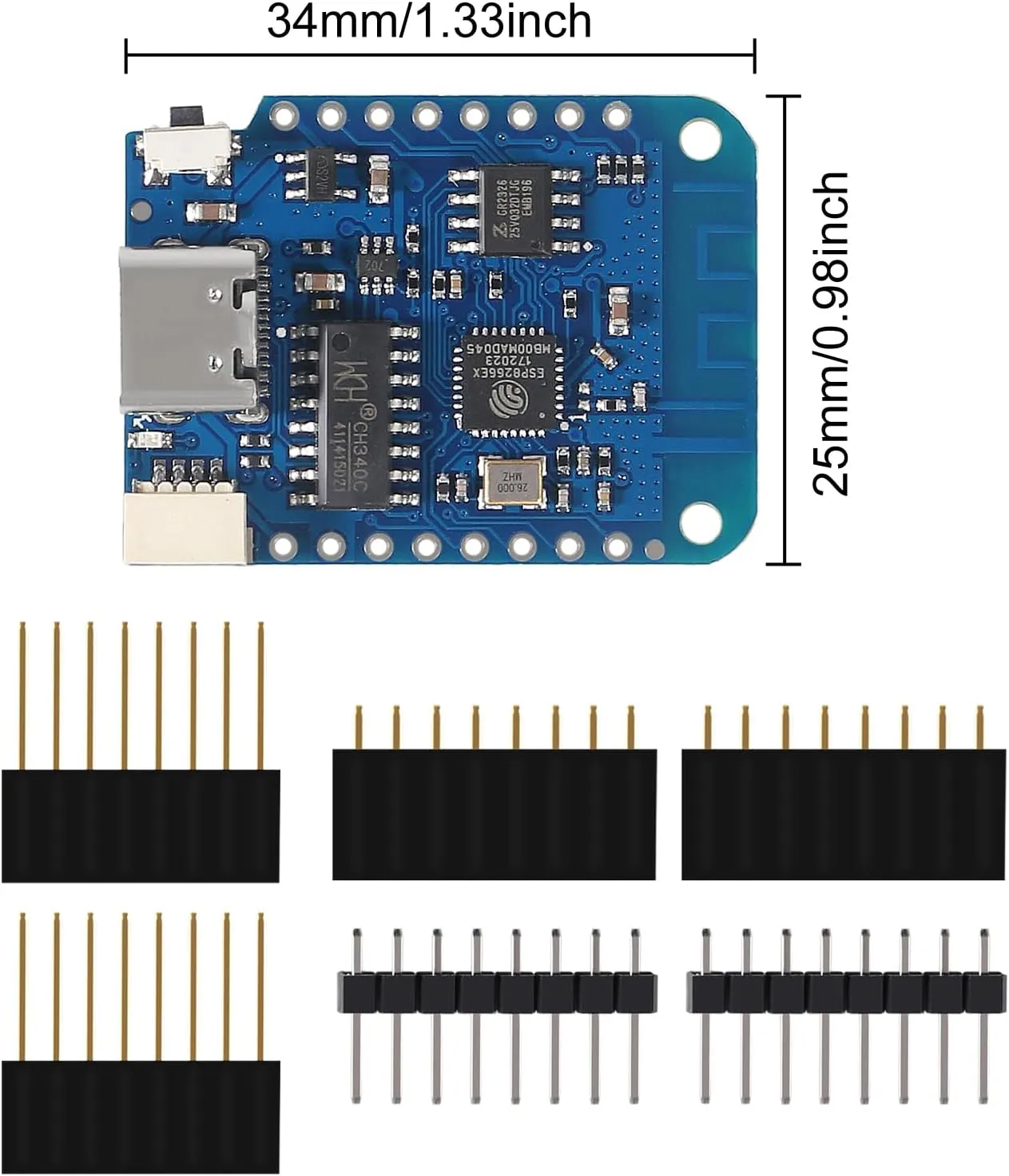

- This is D1 mini, it is a mini NodeMcu Lua WiFi board based on ESP-8266EX.
- 11 digital input / output pins, all pins with interrupt / PWM / I2C / support 1 line (except D0); 1 analog input(3.2V max input). Micro USB connection; Compatible with Arduino; 1MB Flash; 500mA resettable fuse.
- WIFI development board,4M bytes.5V 1A switching power supply (switching power supply）onboard.
- Our D1 mini development board compatible with Arduino WeMos and can be programmed in the compatible for Arduino IDE.
Product Specification
Main Chip: ESP8266 CH340G.
WIFI Development Board, 4M bytes.
supported (except D0).
Support OTA on line.
1 Micro USB connection.
1 analog input (3.3V max input).
5V 1A switching power supply onboard.
11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire and a micro-USB connection.How to get it started in compatible for Arduino:
- Setup driver
Before you use mini D1 boards, you need set up CH340g driver.
- Python
On Windows you need install Python 2.7.10.
On Linux & MAC OSX, you don't need install it, comes preinstalled with OS.
- Installing Hardware package "Boards Manager or GIT".
We recommend using GIT, you can always get the latest version.
Package Includes:

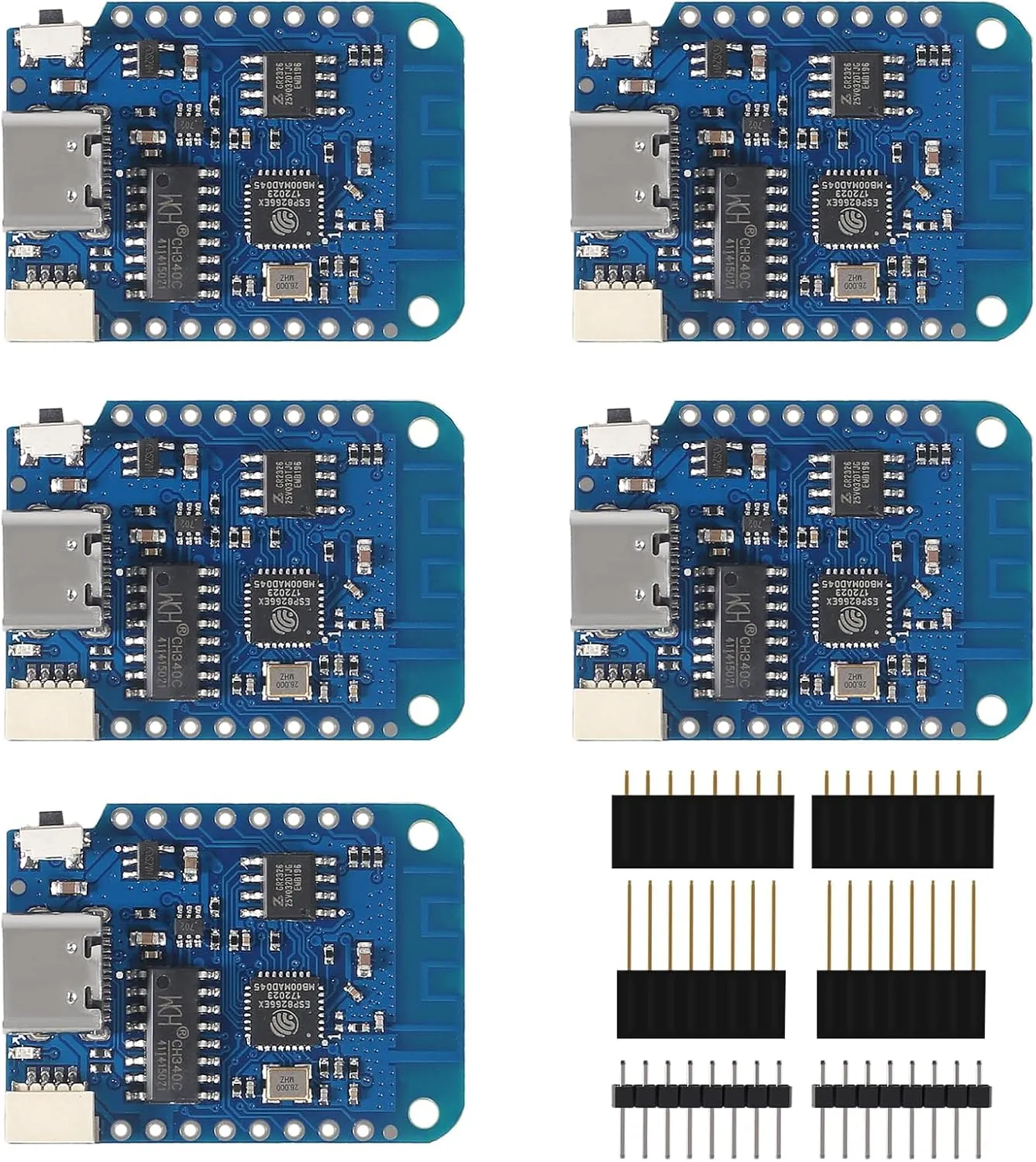

5 x D1 Mini NodeMcu Lua WLAN WIFI Internet Development Board
