- It is a mini NodeMcu Lua Wireless development board based on ESP-8266.
- Compatible with Arduino IDE and WeMos D1 Mini.
- 4M bytes, 5V 1A switching power supply onboard,1MB flash memory; 500mA resettable fuse.
- 11 digital input/output pins, all pins with interrupt/PWM/I2C/1-wire support (except D0); 1 analog input (3.2V max input). Micro USB connection.
- D1 mini development board compatible with Arduino WeMos and can be programmed in the compatible for Arduino IDE.
Description

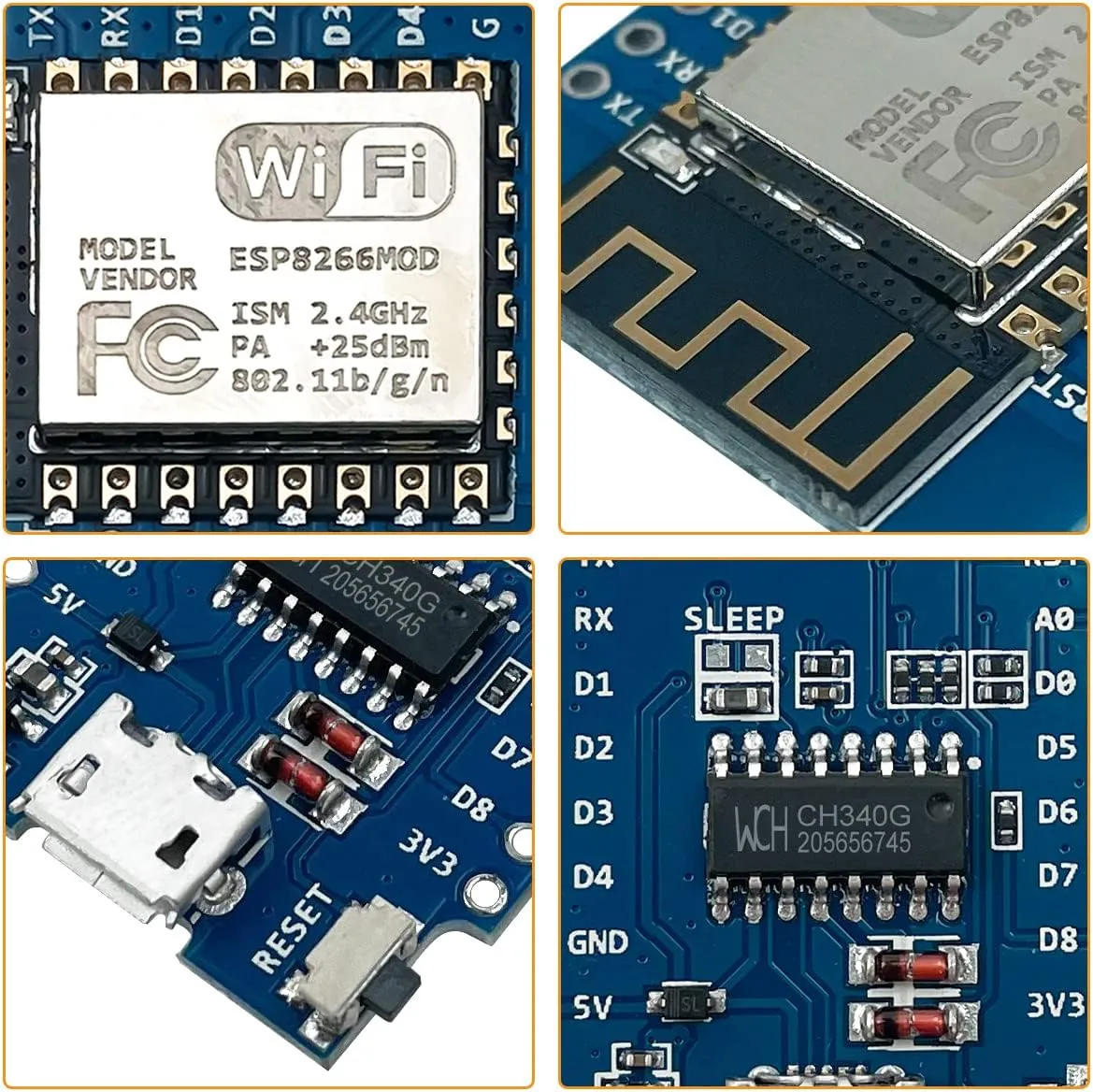

Main Chip: ESP8266 CH340G.
Wireless Development Board, 4M bytes.
supported (except D0).
Support OTA on line.
1 Micro USB connection.
1 analog input (3.3V max input).
5V 1A switching power supply onboard.
11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire and a micro-USB connection.
How to get it started in for Arduino:
- Setup driver
Before you use mini D1 boards, you need set up CH340g driver.
- Python
On Windows you need install Python 2.7.10
On Linux & MAC OSX, you don't need install it, comes preinstalled with OS.
- Installing Hardware package "Boards Manager or GIT".
We recommend using GIT, you can always get the latest version.
Package included:

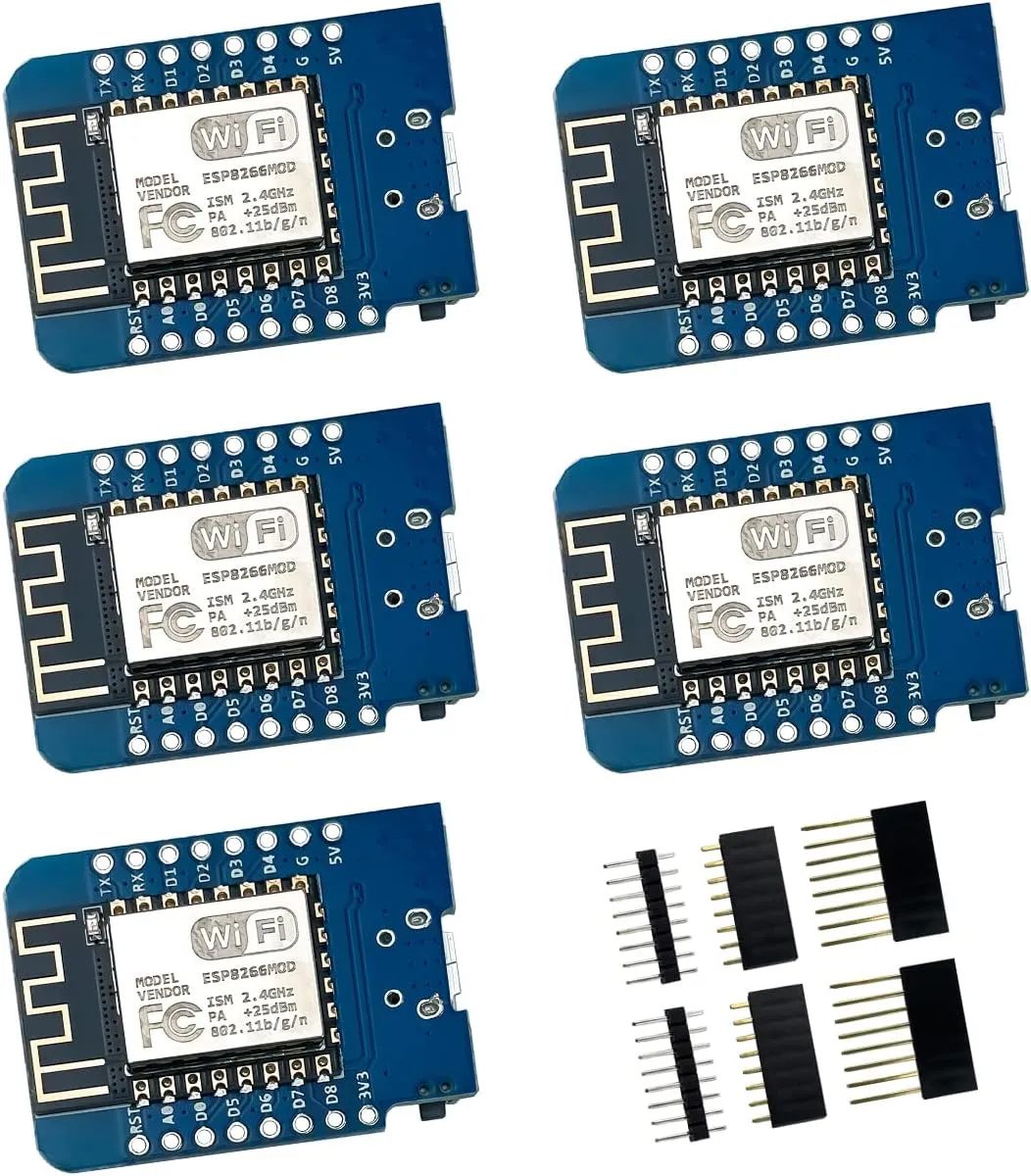

5* ESP8266 D1 Mini Board
