Specifications:
1.Gear motor length: 51mm(include shaft)
2.Main motor size: 20* 11.9* 14mm(L*W*H)
3.Gearbox size: 22*10*16mm(L*W*H)
4AVeight: 55g
5.Output shaft diameter: 3.5mm(D shaft)
6.Output shaft length: 19.8mm
7.Screw shaft length: 7mm
8.Screw shaft diameter: M4
9.Voltage range: DC 3V-12V
10.Test data:
Voltage:3V No-load current:lOmA Stall curent:l00mA No-load speed:7.5RPM
Voltage:6V No-load cu rent:20mA Stall current:200mA No-load speed: 15RPM
Voltage: 12V No-load current:25mA Stall current:400mA No-load speed:30RPM

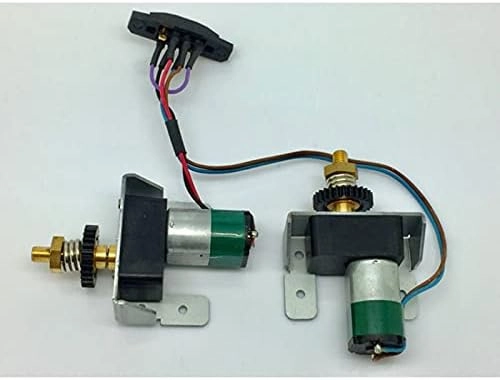

11.Note: The gear motor set has two gear motor.the cables are connected to one plug.we also do not how to use the plug.
If you do not the plug.you can cut the cables into separate cable.We can not provide more data for this geart motor set.
Package includes:
Gear Motor x 2pcs (one set)
Item specifics:
Torque: Not clear
Usage: Home Appliance
Model number: Mini Gear motor
Output power: Not clear
Continuous current(a): Not clear
Protect feature: Totally Enclosed
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: ce,ROHS
Origin: Mainland China
Voltage range: DC 12V
No-load speed: 30RPM
