Servos
Specification:

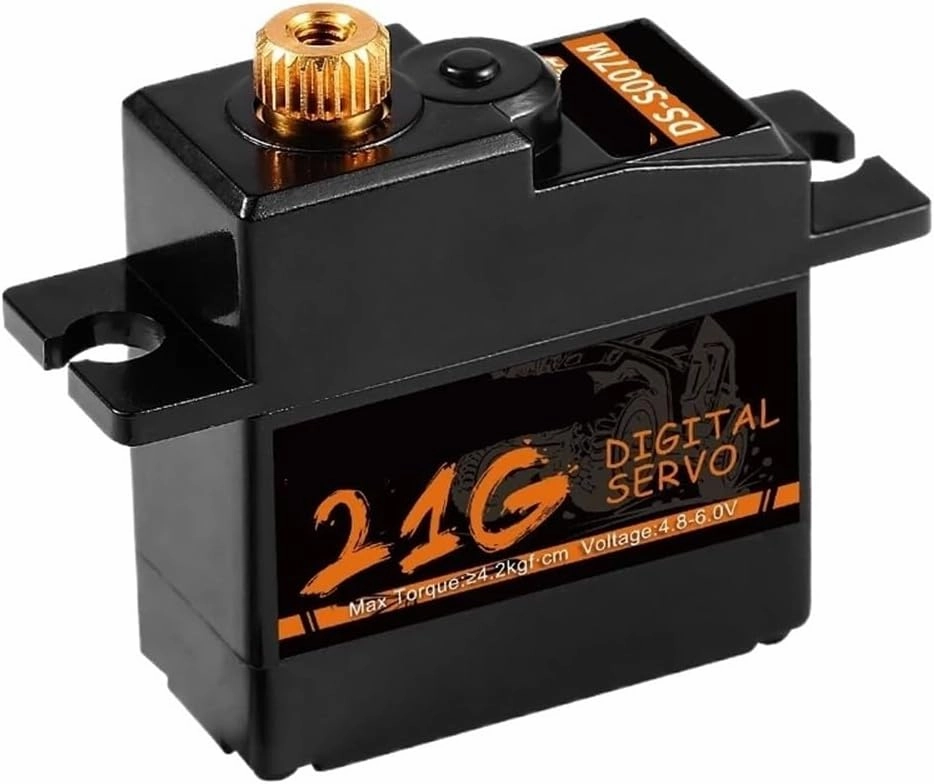

Product Name: S007M
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V3.80kgf.cm; 6.0V4.20kgf.cm
No-load speed: 4.8V0.10s/60°; 6.0V0.12s/60°
Stalled rotor current: 4.8V1500mA; 6.0V1800mA
Current consumption* (no load): 4.8V 200mA; 6.0V 210mA
Maximum action travel angle: 180°±10°(500~2500s)
Dead zone width: 5us
Mechanical limit angle: 360°
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: metal gear
Weight: 21 g
Dimensions: 29.6×13.2×40mm
Connector cable length: JR 250±5mm
Package Included:
1 * 21G digital servo
1 * Servo Arm Accessories
